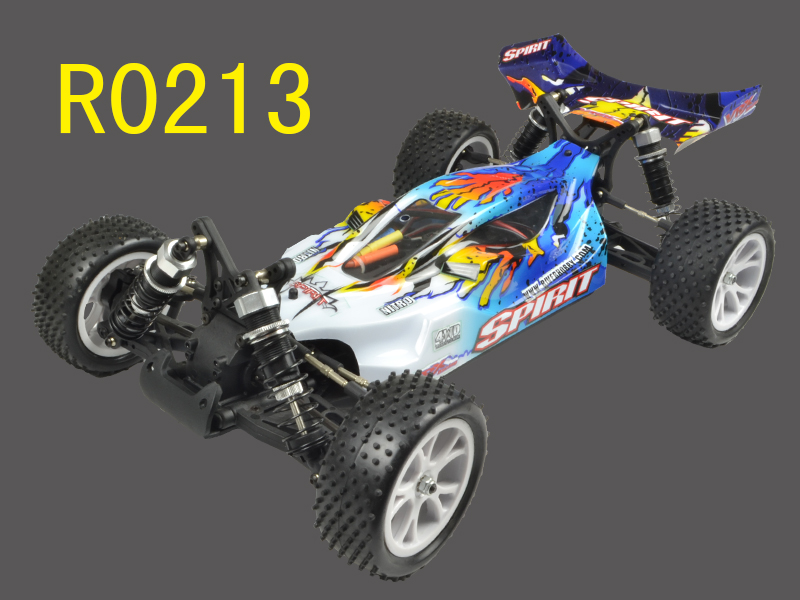

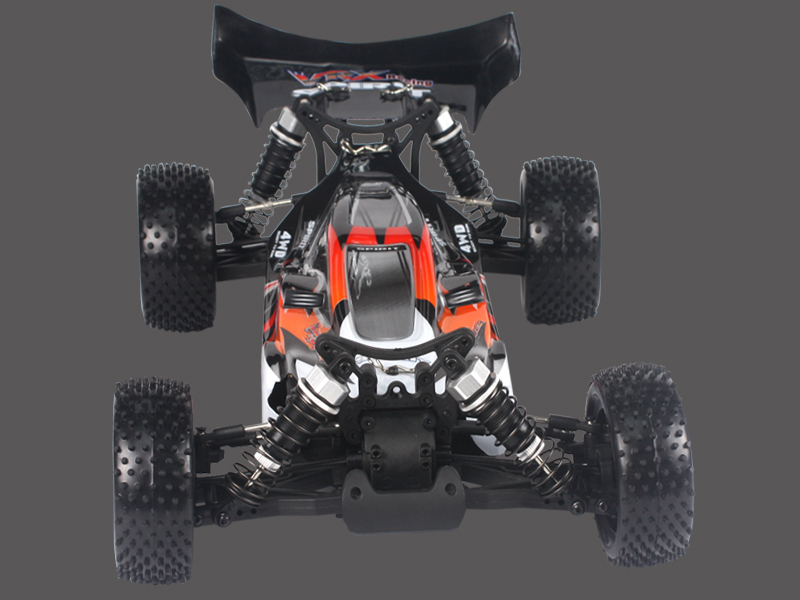

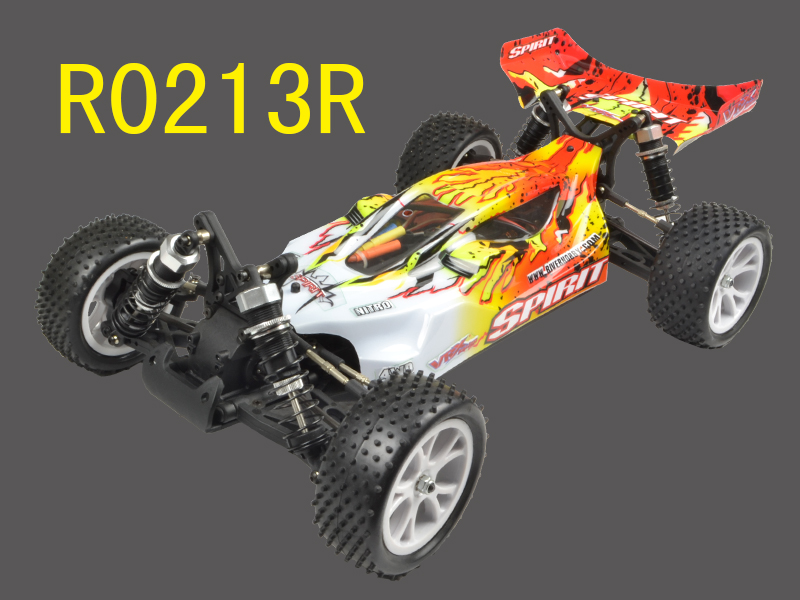

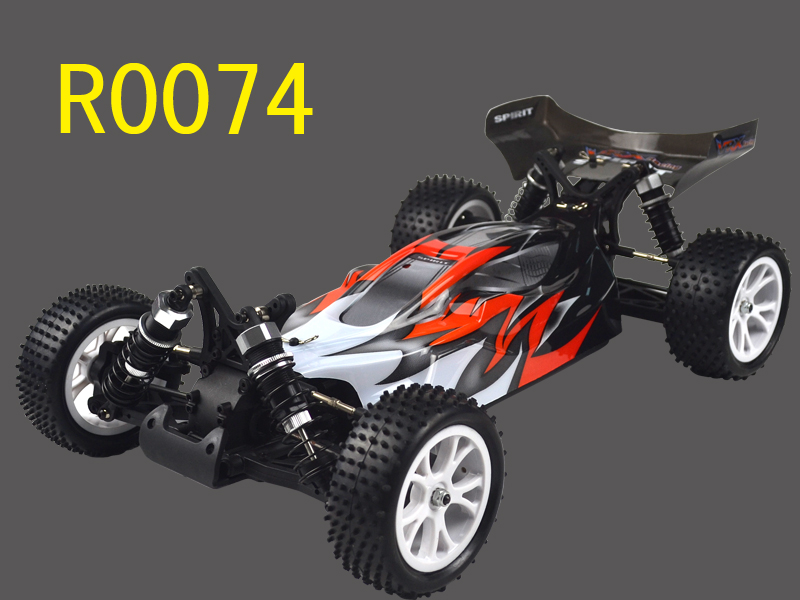

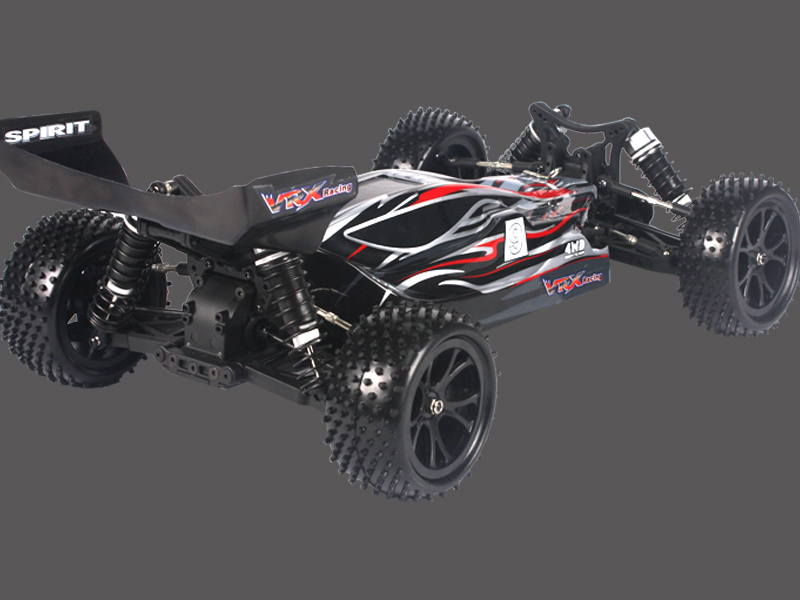

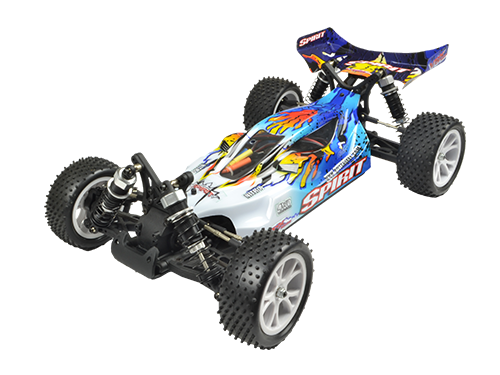

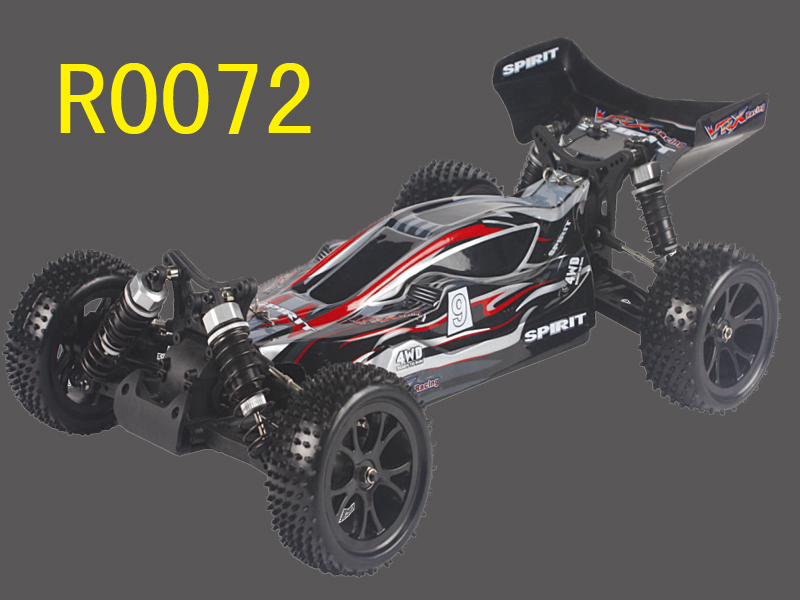

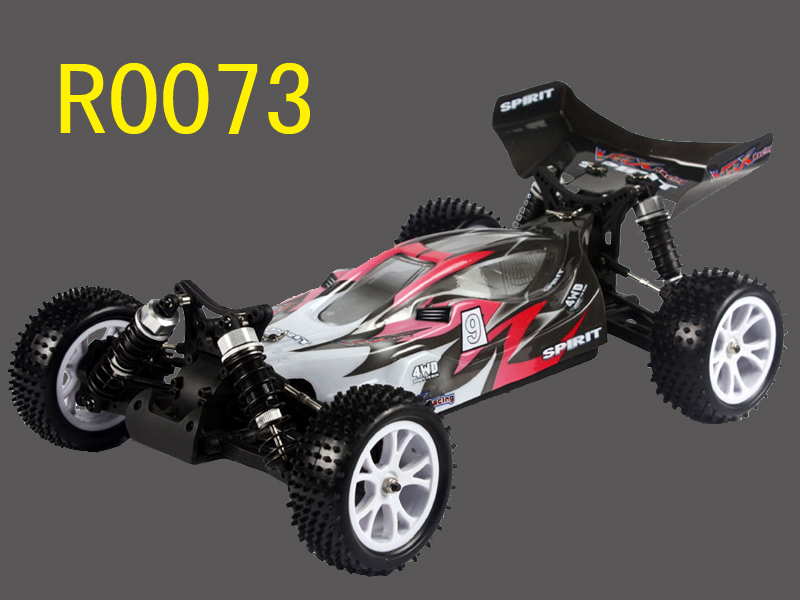

RH1017 Spirit EBL
Length：415MM
Width：255MM
Height：142MM
Wheelbase： 275/280MM
Gear Ratio：8.3:1
Tyre：Φ88*34MM(F); Φ88*39MM(R);
Motor: 3650 Size 3000KV 3.175mm shaft
ESC: 45A Brushless(for 2-3S Lipo)
Battery: 7.4V 3250mAH Lipo(included)
Charger: B3 balanced (Included)
Radio: 2.4GHz Pistol
Ready to Run with 4WD Shaft Drive and Slipper System
Unique Gearbox Design for Low CG
Light & High Impact Arms
Big Bored Shocks
Adjustable Wheelbase on Hubcarrier
Unique Steering System with Front Universal Joint Shafts

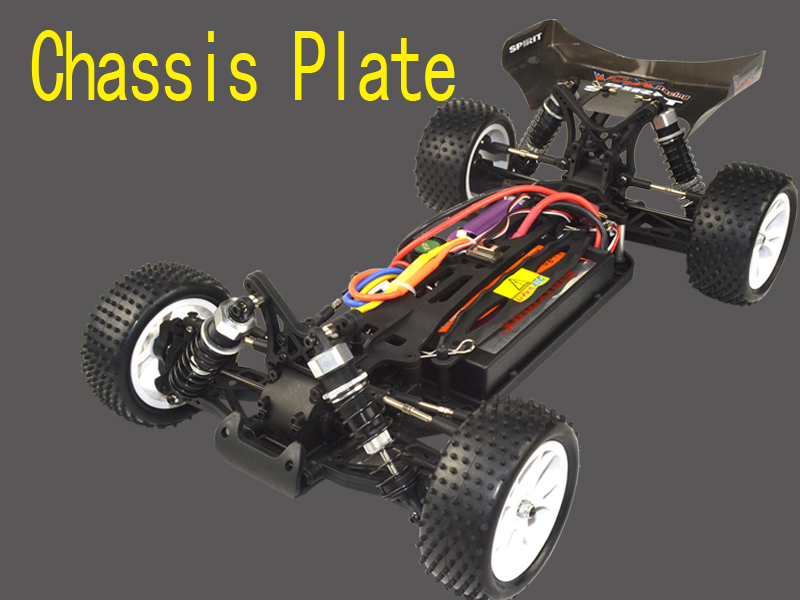

Reinforced Upper Plate to Stiff the Chassis Plate
Slipper System on Spur Gear Avoiding Damage
Nice Structure for Easy Service & Upgrade
Adjustable Grub screws in Susp. arms for Different Racing Field
High Quality RC System Offering Lots of Fun of Racing
Front & Rear Sway Bar System for Option
